Main Features
1. Adopts stable and solid machine base like cnc router, ensure stability and precision in high speed
movement.
2. Crawler-type plate worktable, quite flat, never rust.
3. Transmission system: Taiwan hiwin square guide rail(like cnc router, not belt), precise gear rack to
ensure working accuracy.
4. Japan Panasonic servo motors and drivers, can ensure high speed.
5. with auto correction function(=automatic skew detection) can ensure garments move in
straight line not offset).
6. Adopts stainless steel network chain for worktable, never rust after special treatment; Meanwhile, with
air cylinder to realize negative-pressure absorption function, which ensure materials’ smoothness and
flatness and not offside when working;

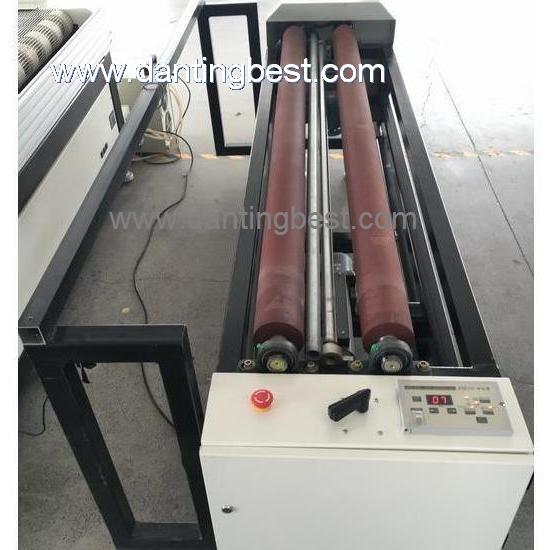

7. Auto-feeder(can front and reverse two directions: After materials finish, the roller can
turn oppositely to get back the garments), can save time and cost and improved working efficiency a lot.
8. Standard cloth bracket on front of machine, quite convenient and easy to pick up the cut pieces.
9. Widely used for various kinds of textile clothing materials, especially seamless bonding fabrics,
suitable for garments production enterprises’ batch processing.
Technical Parameter
|
Model
|
DTCL-1830AF
|
|
Working area
|
1800*3000mm
|
|
Work platform
|
crawler type work platform(with negative pressure absorption function by air cylinder)
|
|
Laser Power
|
130w
|
|
Laser Type
|
CO2 Sealed Laser Tube,10.6μm
|
|
Cooling Type
|
Water Cooling
|
|
Transmission system
|
imported rack + gear transmission system
|
|
Guide rail
|
Taiwan hiwin square guide rail
|
|
Max.Working Speed
|
36000mm/s
|
|

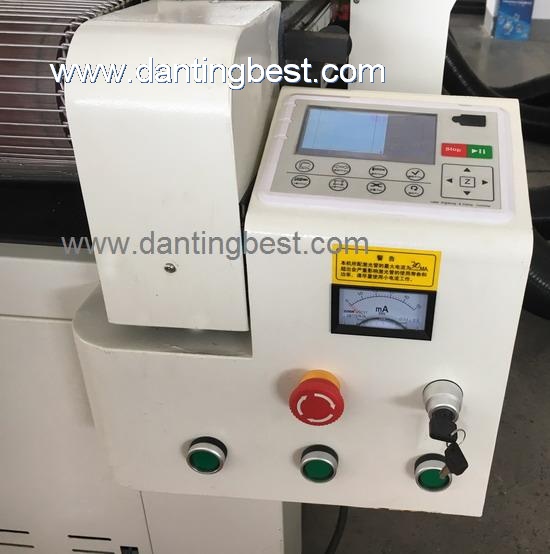

Laser Output Control
|
0-100% Set by Software
|
|
Min.Character Engraved
|
Chinese:2.0mm×2.0mm,Englishletter:1.0mm×1.0mm
|
|
Highest Scanning Precision
|
4000DPI
|
|
Locating Accuracy
|
≤+0.02mm
|
|
Controlling Software
|
DSP Control System
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
|
Compatible Software
|
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.
|
|
Color Separation
|
Yes
|
|
Drive System
|
Japan panasonic servo motors and drivers
|
|

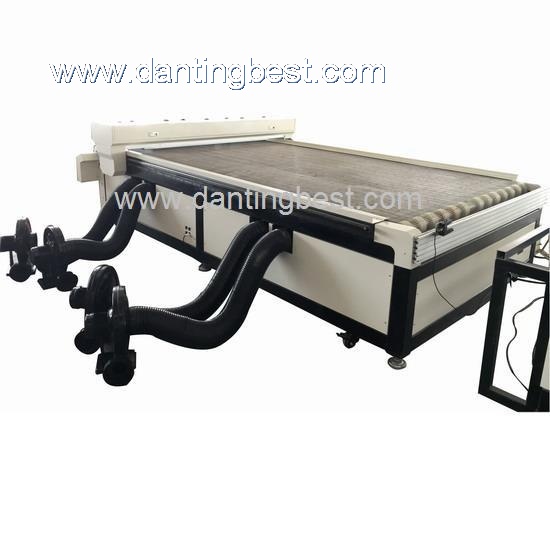

Auxiliary Equipments
|
Exhaust Fan and Smoke Pipe
|
|
Power Supply
|
AC110V/220V+10%,50HZ/60HZ
|
|
Working Environment
|
Temperature0-45℃,Humidity5-95%(No Condensate Water)
|
Applications
Cutting, engraving and punching soft materials, such as all sorts of clothing, leather, carpet, suede fabric,
denim jeans, stuffed toys, textiles, industrial fabrics etc.
|
