Main Features

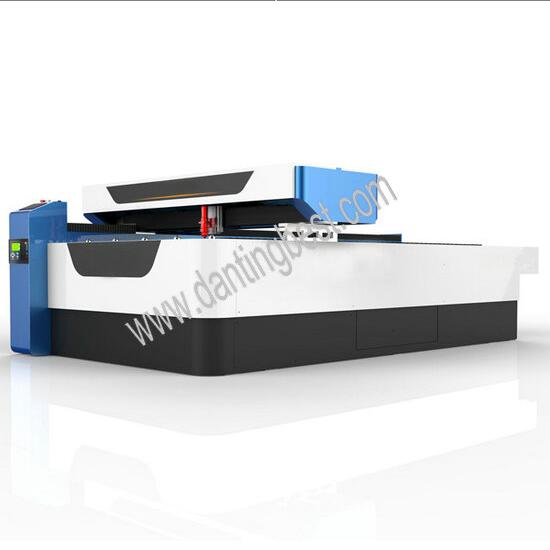

DTCL-MN(C) machine is a mixing cutting machine, specialized in cutting stainless steel, carbon
steel, MDF and acrylic.
1. High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min.
20mm acrylic with perfect cutting quality.
2. DTCL-MN(C) machine is matched with the Japan Panasonic Servo System and high precision
Taiwan TBI ball-screw system to ensure the high precision, stable running and long-operation.
3. Fixed beam optical system: The laser beam is expanding, so the bigger the working area is,
the more difficult the machine is to get the same cutting quality over the whole working area.
The fixed beam optical system can guarantee the consistent beam power and quality over the
whole working area so that the machine can get the same cutting quality.
4. Transmission: Taiwan TBI ball screw and Taiwan HIWIN square guide rail, more stable than
common laser machine with belt.
5. USA original Ⅱ - Ⅵ reflective mirrors and focus lens, with quite high cutting precision and
best quality;
6. Off-computer controlling system: Leetro MPC6565 control system with automatic height-control system, can ensure stability and easy operation.
7. Industrial chiller
Technical Parameter
|
Name
|
DTCL-1313MN(C)
|
DTCL-1325MN(C)
|
|
Processing area
|
1300mm*1300mm
|
1300mm*2500mm
|
|
Laser power
|
Yongli DLT-280w/300w
|
|
Laser type
|
Sealed Co2 glass laser tube
|
|
Cooling mode
|
Water and air cooling system
|
|
Water chiller
|
CW5200/CW6000
|
|
Resetting positioning accuracy
|
±0.01mm
|
|
Compatible Software
|
CorelDraw AutoCAD Photoshop , Laser cut 5.3 , Ruida
|
|
Cutting speed
|
1-70mm/s
|
|
Cutting thickness
|
1.0mm / 1.5mm Stainless steel
1.2mm / 2.5mm carbon steel
20mm / 30mm acrylic
10mm / 15mm MDF
|
|
Resolution ratio
|
≤0.0125mm
|
|
Control system
|
Leetro MPC6565
|
|
Transmit system
|
Taiwan hiwin square guide rail and Taiwan TBI ball screw
|
|
Mirror and lens
|
Made in USA
|
|
Interface
|
USB
|
|
Minimum shaping character
|
letter 0.5mm, Chinese 0.5mm
|
|
Support graphic format
|
DST, PLT, BMP, DXF
|
|
Driving mode
|
Panasonic Servo motor made in Japan
|
|
Cooling mode
|
Circulation water cooling
|
|
Working voltage
|
AC 110 - 220V±10%, 50 - 60Hz or depend on customer
|
|
Operating temperature
|
0-45C
|
|
Operating humidity
|
5-95%
|
|
Packing
|
Ply-wooden case
|
|
Guarantee time
|
Whole machine for one year. laser tube 10 months
|
|
Operation
|
Video to tell customer how to operate the machine
|
Application
Non-Metal materials: such as acrylic, wood, MDF...
Metal materials: such as stainless steel, carbon steel...
|
