Main Features
1. High precision and speed. Marking depth can be controlled easily. Continue working no need
maintenance.

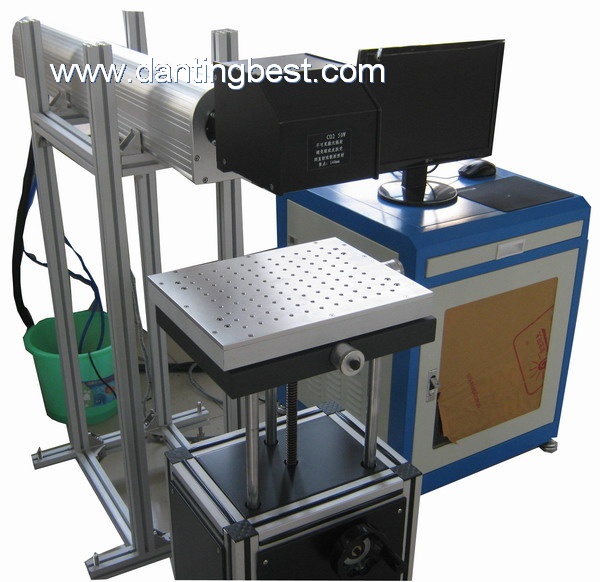

2. DTML-C(G) economic design with glass CO2 tube .High power big working site with lower price.
4. Industry computer, strong anti-interference and adaptation stable working position for 24 working.
5. Red position system avoids material waste.
6. Multi-function software with friendly interface support win7/xp/2000 together with many languages
version. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN code.
7. Supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image.
Image processing for grey conversion, black white conversion and dot.
8. Free control system and outside equipment.
Technical Parameter
|
Model
|
DTML-50C(G)
|
DTML-60C(G)
|
DTML-80C(G)
|
DTML-100C(G)
|
|
Laser Power
|
50W
|
60W
|
80W
|
100W
|
|
Working Area
|
110*110mm/200*200mm/300*300mm
|
|
Laser Wavelength
|
10.64μm
|
|
Response Time
|
0.5ms
|
|
Frequency of Pulse
|
20KHz
|
|
Max Marking Depth
|
0-6mm
|
|
Marking Speed
|
0-7000mm/s
|
|
Minimum Line Width
|
0.1mm
|
|
Minimum Character
|
0.3mm*0.3mm
|
|
Repeatability Accuracy
|
±0.005mm
|
|
Resolution Ratio
|
0.1mm
|
|
Graphic Format Supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
Unit Power
|
≤2KW
|
|
Power
|
220V/50Hz/10A
|
|
Cooling Method
|
Water Cooling
|
Applications
Craft gifts, furniture, leather garments, advertising signs, model making, food packaging, electronic
components, pharmaceutical packaging, printing plate, shell plate and so on.
Leather, rubber, wood, bamboo products, organic glass, tile, plastic, marble, jade, crystal, cloth and other
non-metallic materials.
|
