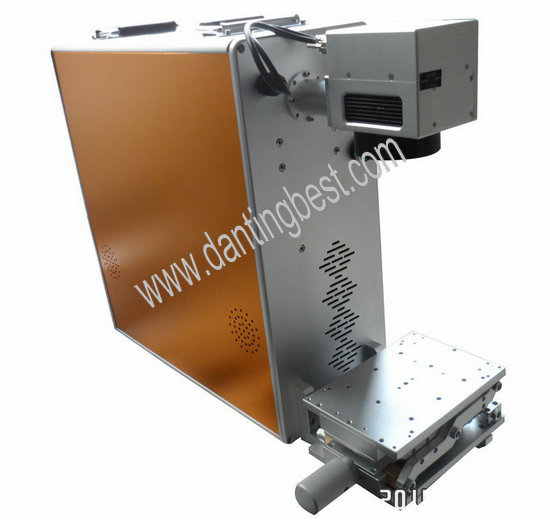

Main Features
1. Small desktop, can put on table, quite convenient to use;
2. The fool installation: just connect two wires, one with your computer(laptop), the other to your
power supply(220V/50Hz);
3. No need computer, reduce cost: after u receive the machine, just connect your laptop to the machine
with one wire will ok.
4. High speed 2-3 times over than traditional diode pumped marking machine.
5. Air-cooling, no after-sales services and maintenance.
6. Long lifetime: 100,000 hours=35years.
Main Advanced configurations
1. Raycus generator(best one in China market, guarantee 2 years, lifetime 100,000 hours); Or Germany
IPG generator, best in worldwide!
2. Germany technology lens head, max speed can reach 20000mm/s, highest precision;
3. Singapo field lens;
4. Beijing EzCad software, easy to use;
5. Taiwan power supply, best quality;
Technical Parameter
|
Model
|
DTML-10F(D)
|
DTML-20F(D)
|
DTML-30F(D)
|
DTML-50F(D)
|
Other
|
|
Laser Power
|
10W
|
20W
|
30W
|
50W
|
......
|
|
Laser Wavelength
|
1064nm
|
|
Q-frequency
|
20KHz~30KHz
|
|
Divergence
|
0.3mard
|
|
Marking Range
|
110*110mm
|
|
Minimum Line Width
|
0.02mm
|
|
Minimum Character
|
0.15mm
|
|
Marking Depth
|
0 ~0.5mm
|
|
Engraving Line Speed
|
≤7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|
Beam Quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber, Serialnumber, Frequency, etc.
|
|
Graphic Format Supported
|
bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
|
|
Working Voltage
|
220V±10%/50Hz/4A
|
|
Unit Power
|
＜0.5kw
|
|
Use of the Environment
|
Clean and Dust Free or Dust less
|
|
Working Condition:Humidity
|
5%-75%，Free of Condensed Water
|
|
Laser Module Life
|
＞100000 hours
|
Applications
1. Mtal&Non-Metal materials and products:stainless steel, copper, aluminum alloy, acrylic, ceramics, plastics,
organics, thermo-elastomer rubbers, paper, scissors, bearing, gear, detonator;
2. Electronic industry: capacitor, inductor, oscillator, PCB, IC, connector, control panel, instrument.
3. Others: cosmetics, food package, bottle, gift, advertisement & signcrafts, craft & gift making.
|
