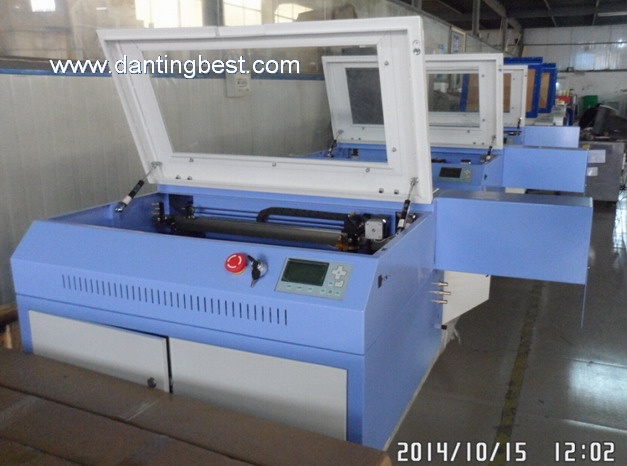

Small Desktop High-Precision Laser Engraving Machine |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product name：Small Desktop High-Precision Laser Engraving Machine |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Item：DTCL-S(D1) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Details： |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Features
1. Modern smart design according to common person’s height, can put on table and watch machine working, quite convenient.
2. Stronger frame with Taiwan HIWIN square guide rail, guarantee high accuracy. 3. Transparent acrylic watching door, easy checking the work process. 4. Independent power supply position with strong anti-interference ability, easy for after-sales support and future maintenance. 5. Stainless steel comb working table, avoid rust. 6. Red red point offers the highest accuracy position. 7. Multi laser tube choices: 35w, 50w, 60w, with stable laser path, can delicate engraving and thin material cutting. 8. Professional motion control card offers continual and fast curve engraving / cutting.
9. USB port, support offline work.
Model DTCL-0403S(D1) DTCL-0503S(D1) DTCL-0504S(D1) Working Area 400*300*50mm 500*300*50mm 500*400*50mm Laser Power 40W/60W/80W Laser Type CO2 Sealed Laser Tube, 10.6μm Cooling Type Water Cooling Engraving Speed 0-60000mm/min Cutting Speed 0-40000mm/min Laser Output Control (0-100% Set by Software ) Min. Engraving Speed Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm Highest Scanning Precision 4000DPI Locating Precision ≤+0.01mm Controlling Software DSP Control System Graphic Format Supported DST PLT BMP DXF DWG AI LAS,etc Compatible Software TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc Color Separation Yes Drive System High-precision 3-phase Stepper Motor Auxiliary Equipments Exhaust Fan and Air Exhaust Pipe power Supply AC110V/220V+10%,50HZ/60HZ Working Environment Temperature:0-45℃,Humidity 5-95%(No Condensate Water) Optional Spare Parts Honeycomb Worktable, Rotary Device,Auto-focus Device Applications --Applicable industry: |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
