Products Description

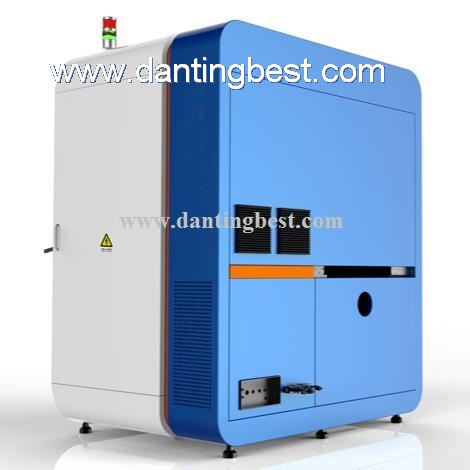

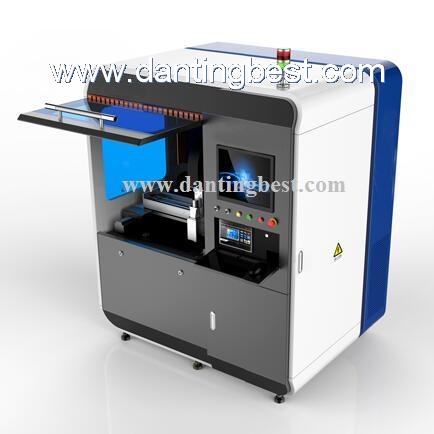

1. DTCM-F Fiber Cutting Machine is one high-technology metal-cutting laser
machine, it is integration of laser cutting, precision machinery, digital numerical
technology.

2. It adopts Germany-technology IPG generator, imported high-precision ball screw
and linear guide rail for transmission, which lead in quite high cutting precision;

3. It use advanced digital numerical control system + quite good dynamic
performance + fast servo response, can realize high cutting efficiency;

4. It is mainly used for carbon steel board’s, stainless steel board’s, Galvanized
sheet’s cutting and shaping, is first choice for metal material processing industry.

Main configurations

1. Raycus China or Germany IPG generator.

2. Special-for-metal-cutting, Non-contact/untouched following system in laser head,
quite convenient.

3. Japan Yasukawa servo system

4. Imported ball screw and linear guide rail transmission system

5. Automatic segmentation exhaust system

6. Industrial water chiller

7. Off-line control system, which support .dxf, .plt, .ai files.

Specification

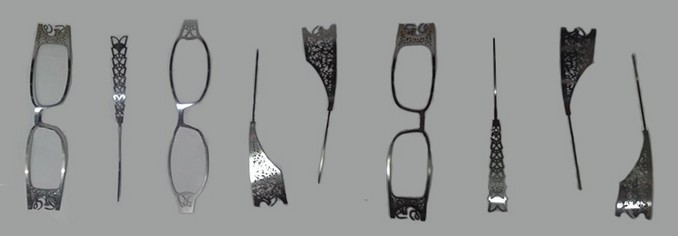

Applied materials

All kinds of thin metal plates, such as carbon-steel board, stainless steel board; Also
can cut Galvanized sheet, electrolytic plate etc
