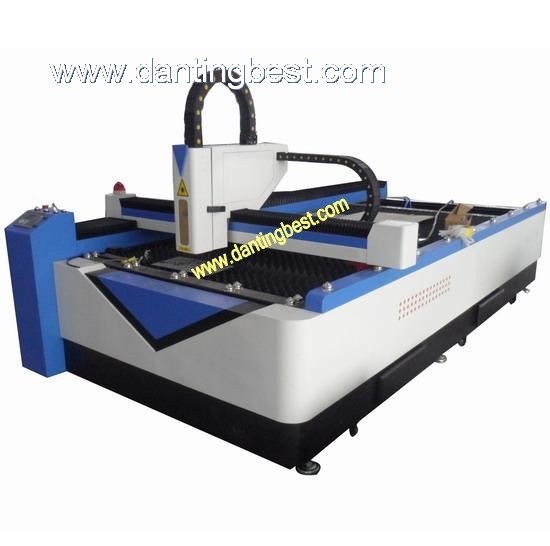

Fiber Laser Cutting Metal Machine(Industry)

Product name：Fiber Laser Cutting Metal Machine(Industry)

Item：DTCM-F(I)

Details：

Products Description

1. DTCM-F(I) Fiber Cutting Machine is one high-technology metal-cutting laser machine,it is integration of laser cutting, precision machinery, digital numerical technology.

2. It adopts Germany-technology IPG generator, imported high-precision ball screw and linear guide rail for transmission, which lead in quite high cutting precision;

3. It use advanced digital numerical control system + quite good dynamic performance + fast servo
response, can realize high cutting efficiency;

4. It is mainly used for carbon steel board’s, stainless steel board’s, Galvanized sheet’s cutting and shaping, is first choice for metal material processing industry.

Main configurations

1. Raycus China or Germany IPG generator: 500w/750w/1000w/2000w

2. Special-for-metal-cutting, Non-contact/untouched following system in laser head, quite convenient

3. Japan Yasukawa servo system

4. Imported ball screw and linear guide rail transmission system

5. Automatic segmentation exhaust system

6. Industrial water chiller

7. Off-line control system, which support .dxf, .plt, .ai files.

Specification

Model	DTCM-1325F(I)	DTCM-1530F(I)
Working area	1300*2500mm	1500*3000mm
Laser type	ND:YVO4
Laser wavelength	1070nm
Laser power	500w/750w/1000w/2000w
Laser quality	<0.373mrad
Max cutting thickness	20mm
Valid cutting area	1250×2500mm
Repeated positioning accuracy	±0.05mm/m
Positioning speed	20m/min
Dimension	3600X1900mmX1900mm
Weight	3000kg
Power supply	380V/50Hz

Machine consumption costs

Gas type	Gas price ($/bottle)	Use time (minutes)	T/Consumption($/hour)	Cutting edge effect	Remarks
Oxygen	2.3	60	2.3	Black edge	Take 1mm carbon steel for example
Nitrogen	3.9	15	15.8	White edge	Take 1mm carbon steel for example
Air			0.8	Golden yellow edge	Suitable for <2mm steel board cutting
Generator gas consumption: NO

Cutting Speed

Material	Carbon steel				Stainless steel			Galvanized sheet
Thickness	1mm	2mm	3mm	4mm	1mm	1.5mm	2mm	0.8mm	1.2mm	1.5mm
Cutting speed(m/min)	8	4.2	2.1	1.2	7.2	3	1.8	5	2.6	1.8

Running cost

Whole machine electricity cost	≤6KW
Laser gas	None
Assisted blowing gas	Oxygen/Nitrogen/Air
The parameters here is not exact but average approximation from many customers’ real use, just for your reference; The assisted blowing gas will be different for different materials, for example, carbon steel and stainless steel will use different blowing gas.

Applications

Cutting sheet metal like, mild steel, stainless steel, carbon steel, galvanized sheet, titanium, zinc coated steel, etc.

←[Previous：DTCM-0604F]

Related Products :

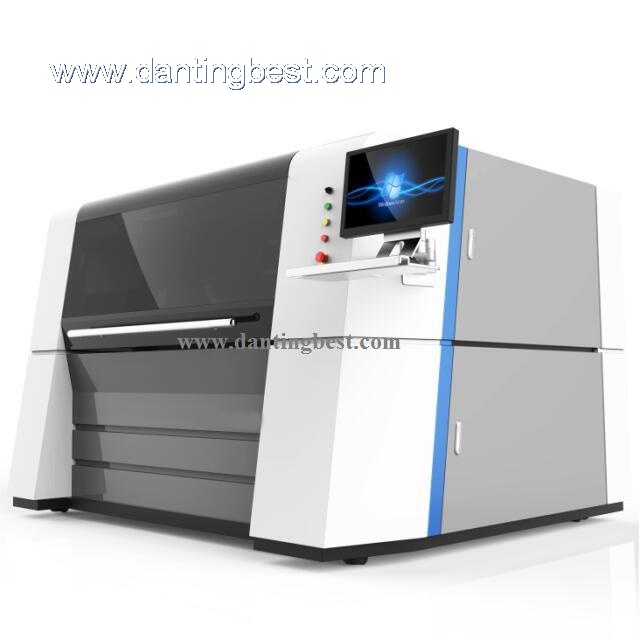

DTCM-1309F
Fiber Cutting Machine

DTCM-F(A)
Fiber Laser Cutting Metal Machine(Advertising)

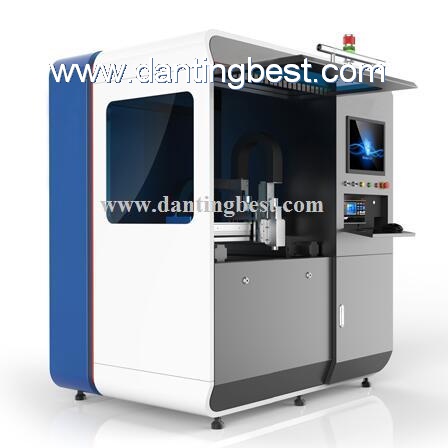

DTCM-0604F
