Description

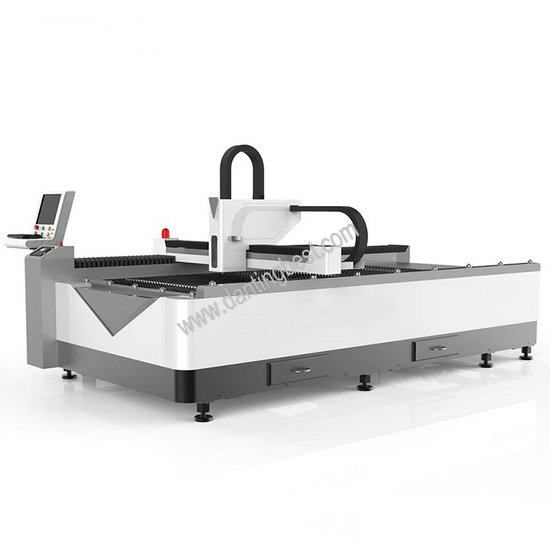

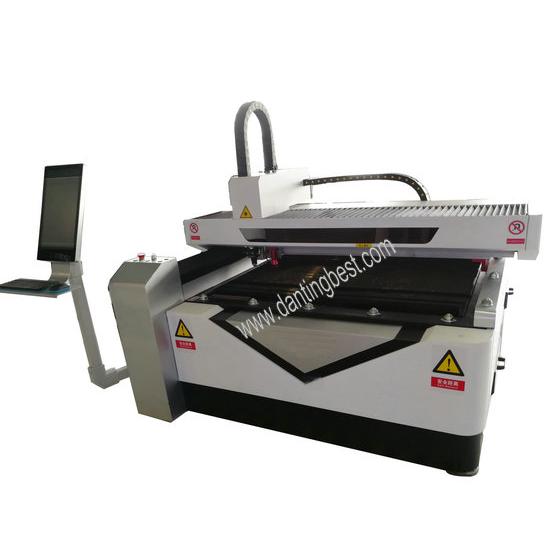

DTCL-MN(FC) is one mixed machine, with fiber generator and CO2 laser tube: fiber can mark/engrave +
cut all kinds of metal materials such as stainless steel, carbon steel; CO2 can engrave + cut non-metal
materials suchas acrylic, wood, mdf, leather, garments...
1. Strongest machine frame: Aviation aluminum beam
--Adopt the 3rd generation aviation aluminum beam, which is manufactured with aerospace standard and
pressed & extruded to shape by 4300 tons weight.
--After aging treatment, its strength can reach to 6061 T6 which is the strongest strength of all beams.
--Also, as is well known, aviation aluminum has many advantages such as pretty appearance, good toughness,
light weight, resistant corrosion, anti-oxidation, low density ...;
--Most important is, it is durable and can greatly increase the working efficiency.
2. Money and Time Saving:
3. High configurations:
--Adopted Taiwan HIWIN square guide rail and Taiwan TBI ball screw transmission, like CNC Router, quite strong and stable
--Adopt Taiwan Delta servo motors and drivers, with highest precision and fast speed: the positioning accuracy can
be 0.02mmm, ensured the cutting quality and efficiency of metal and non-metal materials.
--Raycus fiber generator + reci w6 laser tube
--USA original Ⅱ - Ⅵ reflective mirrors and focus lens, with quite high cutting precision and best quality;
--Au3Tech laser head with Cypcut controller
--Automatic lifting material working table
--Automatic segmentation exhaust system
--Au3Tech operating system, which support .dxf, .plt, .ai files.
--Industrial chiller
--Computer and pad screen humanization design
Technical Parameter
|
Name
|
DTCL-1325MN(FC)
|
|
Processing area
|
1300mm*2500mm
|
|
Laser power
|
500w / 750w / ... Raycus fiber + Reci W6 150w CO2
|
|
Resetting positioning accuracy
|
±0.02mm
|
|
Compatible Software
|
CorelDraw AutoCAD Photoshop , Laser cut 5.3 , Ruida
|
|
Cutting speed
|
1-30mm/s
|
|
Cutting thickness
|
Depend on metal
20mm acrylic
10mm MDF
|
|
Resolution ratio
|
≤0.0125mm
|
|
Transmit system
|
Taiwan hiwin square guide rail and Taiwan TBI ball screw
|
|
Mirror and lens
|
Made in USA
|
|
Interface
|
USB
|
|
Minimum shaping character
|
letter 0.5mm, Chinese 0.5mm
|
|
Support graphic format
|
DST, PLT, BMP, DXF
|
|
Driving mode
|
Taiwan Delta Servo motors and drivers
|
|
Working voltage
|
AC 110 - 220V±10%, 50 - 60Hz or depend on customer
|
|
Operating temperature
|
0-40C
|
|
Operating humidity
|
5-95%
|
|
Packing
|
Ply-wooden case
|
|
Guarantee time
|
Whole machine for one year, Raycus 2 years, CO2 laser tube 10 months
|
|
Operation
|
Video to tell customer how to operate the machine
|
Application
--Metal materials: such as stainless steel, carbon steel, non-ferrous meta, galvanized sheet,
electrolytic plate, aluminium alloy, brass, red cooper ...
--Non-Metal materials: such as acrylic, wood, MDF, leather ...
