Main Features

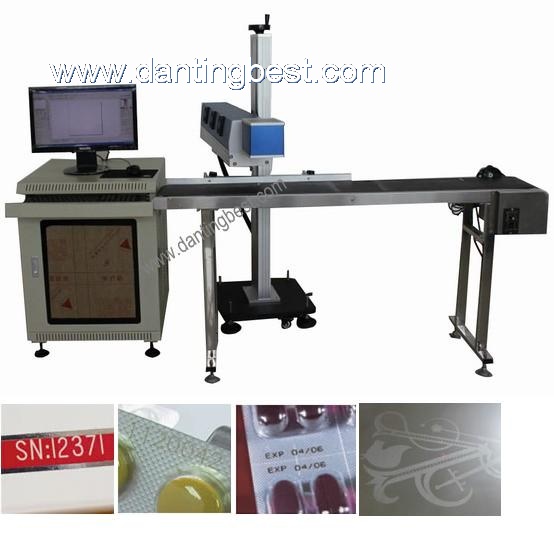

Flying (on-line) laser marking machine is a high-tech product, which developed and designed upon the online spraying the
code in each industry. High electro-optical conversion rate, stable performance,
sustainable work for a long time, can be in production line without pause, achieve sustained marking!
1. Strong text layout and graphics processing functions can automatically generate lot numbers and serial number.
2. Flexibility to modify software functions, continuously adjustable.
3. Speed, safety and environmental protection marks a clear non-erasable.
4. Flying (on-line) laser marking machine can mark on metal and most of non-metal materials.
5. With red light position device accurately indicates the location of laser head process eliminate the
trouble about manual position.
6. CO2, YAG and Fiber all can be made to this flying(on-line) laser marking machine, so can suitable for all kinds of their corresponding materials.
Technical Parameter
|
Model
|
DTML-M(C)
|
BML-M(Y)
|
BML-M(F)
|
|
Laser Power
|
30W/55W
|
50W /75W/100W
|
10W/ 20W /30W
|
|
Laser Tube
|
USA RF Laser Tube
|
YAG LASER MODEL
|
Fiber Generator
|
|
Laser Wave Length
|
10640nm
|
1064nm
|
1064nm
|
|
Cooling
|
Air Cooling
|
Air Cooling
|
Air Cooling
|
|
Marking Width
|
110mm or 200mm（According to Filed Lens）
|
|
Marking Length
|
No Limited
|
|
Minimum Line Width
|
0.1mm
|
|
Minimum Character
|
0.3mm
|
|
Marking Speed
|
≤10000mm/s
|
|
Marking Depth
|
≤1mm
|
|
Repeatability
|
±0.01mm
|
|
Maximum Line Speed
|
70m/min
|
|
Flying Marking the Number of Rows
|
<8 lines
|
|
Character Type
|
In Chinese and English Characters, Numbers, Symbols
|
|
Power
|
AC220V±10%,50Hz/15A
|
|
Total Power
|
＜1.5 kw
|
|
Temperature
|
5~40℃
|
|
Total Weight
|
220KG（No Conveyor）
|
Applications
--Applicable Industries: Electronics, medicine, tobacco, leather, packaging, beverages, food and other
industries, for the production date, batch number, bar code on the line in the high-performance
automated laser marking
--Applicable materials: Bar code marking packaging industry, packaging industry, plastic bottles, paper,
bottle caps, wires, serial number of food, medicine marking.
|
