Description:

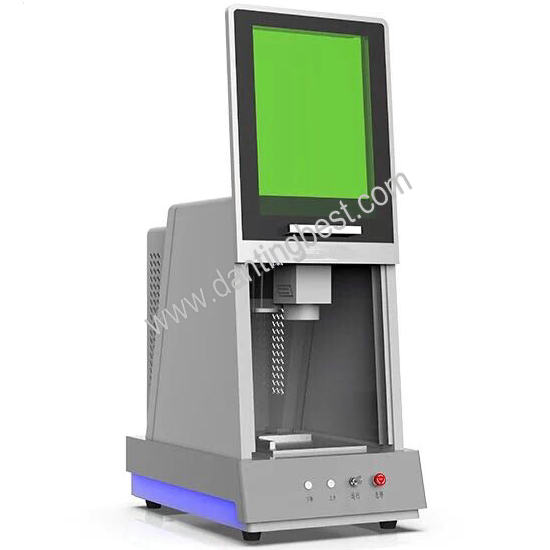

1. CE protective Cover and Class-1 Protection: the protective cover is atrovirens color 1070nm
fiber special-used protective material, better than common protective glasses; Also it let your
eyes free: no need wear protective glasses again; And most important is, it protect your eyes
and protect your hands and protect operators, comply with European standards, qute safei!
2. Comply with many certificates: it passed the European Union CE certificate, American FDA
certificate and are certified to ISO 9001. And r sold to USA, Canada, Australia, Europe, South
east Asia, Africa... more than 100 countries and areas, quite hot popular!

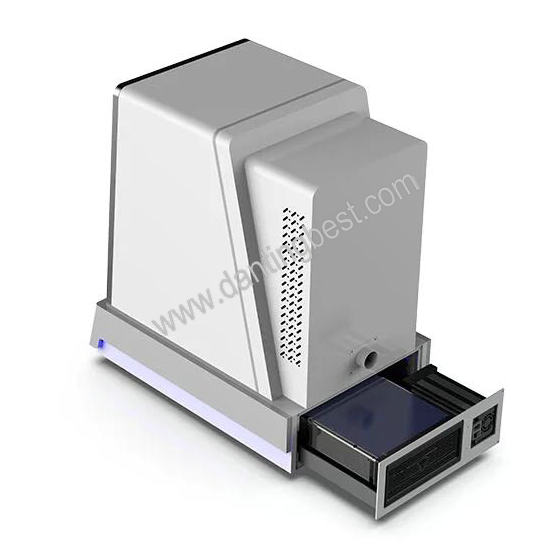

3. Compact and Portable, quite convenient: its size is small with light weight, easy to move.
4. No pollution, is the concept of environmental protection products;
5. Air-cooling, no after-sales services and maintenance.
6. Long lifetime: 100,000 hours=35years.
Technical parameters:
|
Model
|
DTML-20F(C)
|
DTML-30F(C)
|
|
Laser power
|
20W
|
30W
|
|
Laser Wavelength
|
1065±10nm
|
|
Laser Repetition Frequency
|
≤50kHz
|
|
Divergence
|
0.3mard
|
|
Marking range
|
110mm*110mm(Optional:175*175mm)
|
|
Minimum line width
|
Laser Repetition Frequency
|
|
Minimum character
|
0.4mm
|
|
Marking speed
|
10000mm/s
|
|
Marking depth
|
0 ~ 2mm
|
|
Engraving line speed
|
≤7000mm/s
|
|
Repeatability accuracy
|
±0.01mm
|
|
Beam quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc.
|
|
Graphic format supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt, etc
|
|
working voltage
|
220V±10%/50Hz/4A
|
|
Unit power
|
＜0.5kw
|
|
Use of the environment
|
Clean and dust free or dust less
|
|
Working condition: Temperature
|
10℃-40℃
|
|
Working condition:Humidity
|
5%-75%, free of condensed water
|
|
Laser module life
|
＞100000 hours
|
Applications:
1. Mtal&Non-Metal materials and products:stainless steel, copper, aluminum alloy, acrylic, ceramics,
plastics, organics, thermo-elastomer rubbers, paper, scissors, bearing, gear, detonator;
2. Electronic industry: capacitor, inductor, oscillator, PCB, IC, connector, control panel, instrument.
3. Others: cosmetics, food package, bottle, gift, advertisement & signcrafts, craft & gift making.
|
