Main Features
1. X&Y axis with HIWIN high accuracy square rail, perfect performance.
2. Only manufacturer invest high-precision equipments, guarantee all parts with high standard precision,
easy to replace and maintenance, most important is, reduce cost, no need purchase machine shells, all
is made by ourselves, so we can provide quite competitive price.
3. High efficiency tube with stable laser path, life time reaches to 10000 hours.
4. Red dot point offers highest accuracy position.

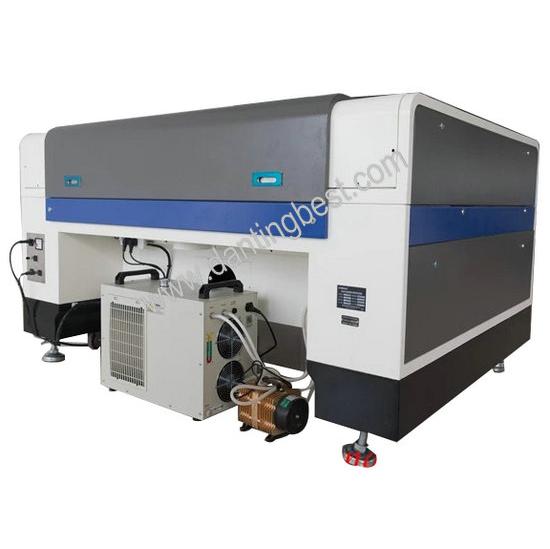

5. Humanized and modern design: 4 sides all is through open, means: 4 sides can input materials in;
Exhausted fan, air compressor and water chiller can put under machine behind, save space and convenient.
6. Professional motion control card offers continue fast curve cutting together with shortest path selection. Shorten work time.
Technical Parameter
|
Model
|
DTCL-1309M
|
|
Working Area(mm)
|
1300*900mm
|
|
Laser Power
|
80w/100w/130w
|
|
Laser Type
|
CO2 Sealed Laser Tube , 10.6μm
|
|
Cooling Type
|
Water Cooling
|
|
Engraving Speed
|
0-60000mm/min
|
|
Cutting Speed
|
0-40000mm/min
|
|
Laser Output Control
|
0-100% set by software
|
|
Min. Engraving Size
|
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm
|
|
Highest Scanning Precision
|
4000DPI
|
|
Locating Accuracy
|
≤+0.01mm
|
|
Controlling Software
|
DSP Control System
|
|
Graphic Format Supported
|
DST PLT BMP DXF DWG AI LAS,etc
|
|
Compatible Software
|
CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
|
|
Color Separation
|
Yes
|
|
Drive System
|
High-precision 3-phase Stepper Motor
|
|
Auxiliary Equipments
|
Exhaust Fan and Air Exhaust Pipe
|
|
Power Supply
|
AC110V/220V+10%,50HZ/60HZ
|
|
Working Environment
|
Temperature:0-45C,Humidity 5-95%(No Condensate Water)
|
Applications
1). Applicable industry:
Mould industry(construction mould, aviation and navigation mould, wooden mould), advertising,
decoration, arts and crafts, electronics, electric appliances, etc.
2). Applicable Materials:
Acrylic, wood planks(light planks,candle-nut wood), bamboo ware, double color board, paper, leather,
shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.
