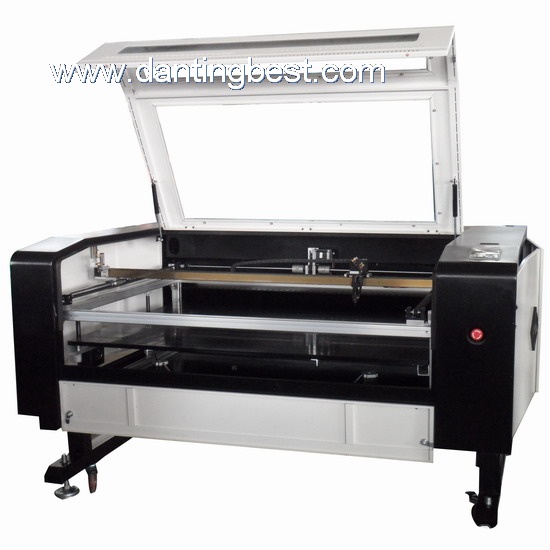

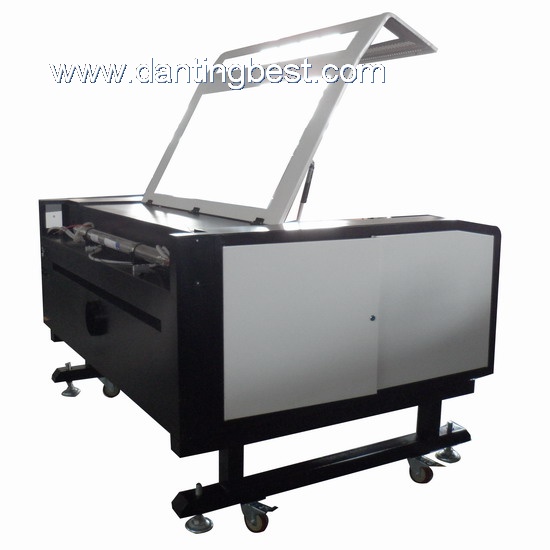

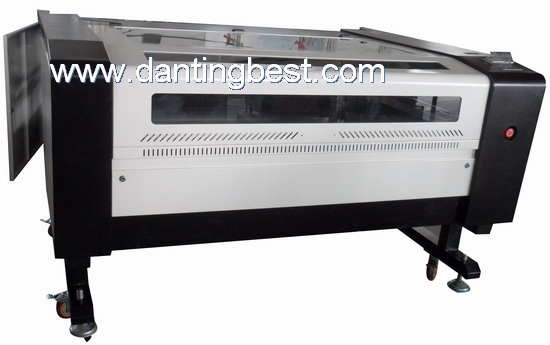

High-Speed Laser Cutting Machine with Special Price(especially for garments industry)

Product name：High-Speed Laser Cutting Machine with Special Price(especially for garments industry)

Item：DTCL-1309M(SP)

Details：

Main Features

1. Similar Design as DTCL-S(D2), just added stand frame to support big working size, quite
popular and pretty;

2. Package size quite small: after remove its stand frame below, package size just 2.5CBM,
quite small, can save shipping space and shipping cost;

3. With 80w laser tube, so both do engraving and cutting.

4. Easy foolish operation: just one button to start/shut down machine, then easiest software
operation;

5. High-speed slide guide rail with faster engraving & cutting speed: most suitable for fabrics
cutting industry/leather cutting industry/garments cutting industry.

6. DSP control system: support offline work

7. Much more economical, cheaper a lot than common-in-China market big laser machines.

Technical Parameter

Model	DTCL-1309M(SP)
Working/Engraving Area	1300*900mm
Laser Power	80W
Laser Type	CO2 Sealed Laser Tube, 10.6μm
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Cutting Speed	0-40000mm/min
Laser Output Control	(0-100% Set by Software )
Min. Engraving Speed	Chinese: 2.0mm2.0mm, English Letter: 1.0mm1.0mm
Highest Scanning Precision	4000DPI
Locating Precision	≤+0.01mm
Controlling Software	DSP Control System
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible Software	TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD, etc
Color Separation	Yes
Drive System	High-precision 3-phase Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
power Supply	AC110V/220V+10%,50HZ/60HZ
Working Environment	Temperature:0-45℃,Humidity 5-95%(No Condensate Water)
Optional Spare Parts	Honeycomb Worktable

Applications

1). Applicable industry:
Mould industry(construction mould, aviation and navigation mould, wooden mould), advertising,
decoration, arts and crafts, electronics, electric appliances, etc.
2). Applicable Materials:

Acrylic, wood planks(light planks,candlenut wood), bamboo ware, double color board, paper, leather,
shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.
