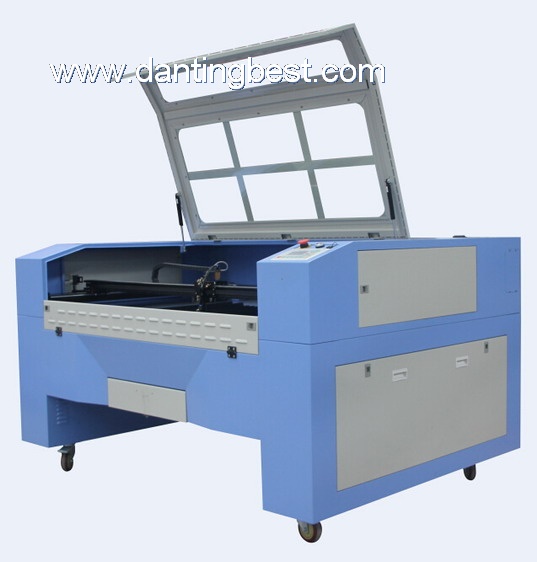

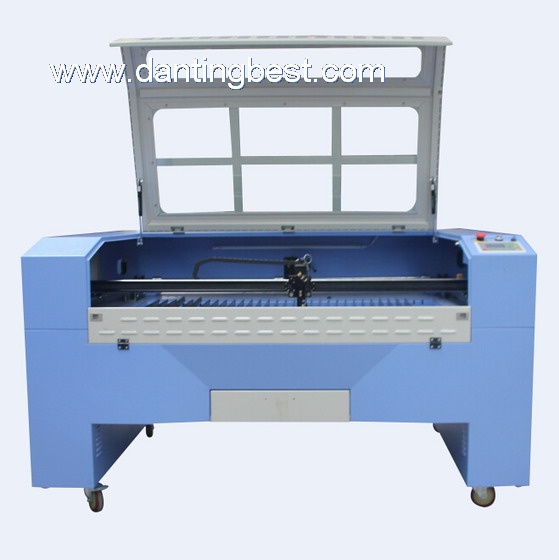

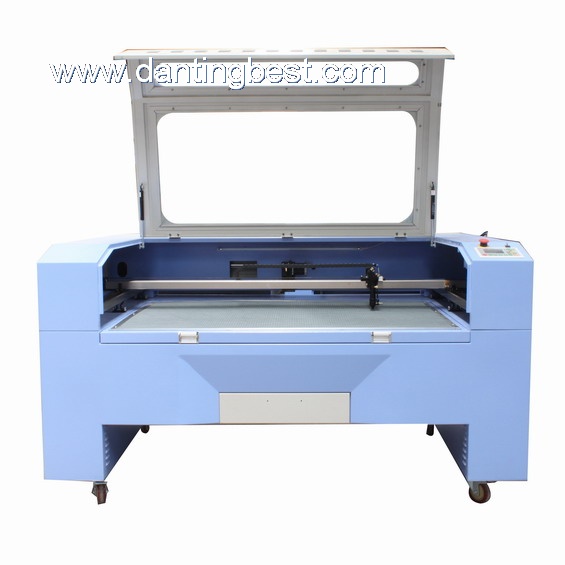

High-speed Laser Engraving&Cutting Machine(No up&down table)

Product name：High-speed Laser Engraving&Cutting Machine(No up&down table)

Item：DTCL-1309M

Details：

Main Features

1. X&Y axis with HIWIN high accuracy square rail, perfect performance.
2. Only manufacturer invest high-precision equipments, guarantee all parts with high standard precision,
easy to replace and maintenance, most important is, reduce cost, no need purchase machine shells, all
is made by ourselves, so we can provide quite competitive price.
3. High efficiency tube with stable laser path, life time reaches to 10000 hours.
4. Red dot point offers highest accuracy position.
5. Humanized and modern design makes work happy, safe and easy.
6. Professional motion control card offers continue fast curve cutting together with shortest path selection.
Shorten work time.

7. No up&down worktable, but with drawer in the middle, quite suitable for person to pick up cut pieces.

Technical Parameter

Model	DTCL-1309M
Working Area(mm)	1300*900mm
Laser Power	60w/80w/100w/130w
Laser Type	CO2 Sealed Laser Tube , 10.6μm
Cooling Type	Water Cooling
Engraving Speed	0-60000mm/min
Cutting Speed	0-40000mm/min
Laser Output Control	0-100% set by software
Min. Engraving Size	Chinese: 2.0mm2.0mm, English Letter: 1.0mm1.0mm
Highest Scanning Precision	4000DPI
Locating Accuracy	≤+0.01mm
Controlling Software	DSP Control System
Graphic Format Supported	DST PLT BMP DXF DWG AI LAS,etc
Compatible Software	CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation	Yes
Drive System	High-precision 3-phase Stepper Motor
Auxiliary Equipments	Exhaust Fan and Air Exhaust Pipe
Power Supply	AC110V/220V+10%,50HZ/60HZ
Working Environment	Temperature:0-45C,Humidity 5-95%(No Condensate Water)

Applications

1). Applicable industry:
Mould industry(construction mould, aviation and navigation mould, wooden mould), advertising,
decoration, arts and crafts, electronics, electric appliances, etc.
2). Applicable Materials:

Acrylic, wood planks(light planks,candlenut wood), bamboo ware, double color board, paper, leather,
shell, coconut shell, ox horn, resin animal grease, ABS board, lamp shade, etc.
