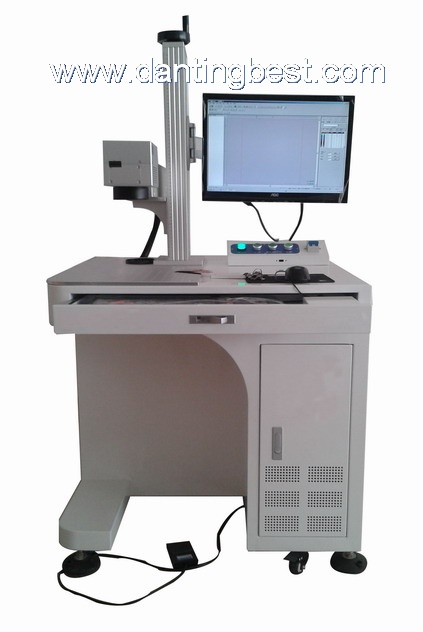

Integrated Fiber Laser Marking Machine

Product name：Integrated Fiber Laser Marking Machine

Item：DTML-F(I)

Details：

Main Features

1. With electric lift, up&down easily;

2. Office-table humanity design, pretty, and convenient to work when sitting;

3. No pollution, is the concept of environmental protection products;

4. High speed 2-3 times over than traditional diode pumped marking machine.
5. Air-cooling, no after-sales services and maintenance.
6. Long lifetime: 100,000 hours=35years.

Main Advanced configurations

1. Raycus generator(best one in China market, guarantee 2 years, lifetime 100,000 hours);
Or Germany IPG generator, best in worldwide!
2. Germany technology lens head, max speed can reach 20000mm/s, highest precision;
3. Singapo field lens;
4. Beijing EzCad software, easy to use;
5. Taiwan power supply, best quality;

Technical Parameter

Model	DTML-10F(I)	DTML-20F(I)	DTML-30F(I)	DTML-50F(I)	Other
Laser Power	10W	20W	30W	50W	......
Laser Wavelength	1064nm
Q-frequency	20KHz~30KHz
Divergence	0.3mard
Marking Range	110*110mm
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~0.5mm
Engraving Line Speed	≤7000mm/s
Repeatability Accuracy	±0.001mm
Beam Quality	M2:1.2~1.8
Marking Format	Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber, Serialnumber, Frequency, etc.
Graphic Format Supported	bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Working Voltage	220V±10%/50Hz/4A
Unit Power	＜0.5kw
Use of the Environment	Clean and Dust Free or Dust less
Working Condition:Humidity	5%-75%，Free of Condensed Water
Laser Module Life	＞100000 hours

Applications

1. Mtal&Non-Metal materials and products:stainless steel, copper, aluminum alloy, acrylic,
ceramics, plastics, organics, thermo-elastomer rubbers, paper, scissors, bearing, gear, detonator;

2. Electronic industry: capacitor, inductor, oscillator, PCB, IC, connector, control panel, instrument.

3. Others: cosmetics, food package, bottle, gift, advertisement & signcrafts, craft & gift making.
