Main Features

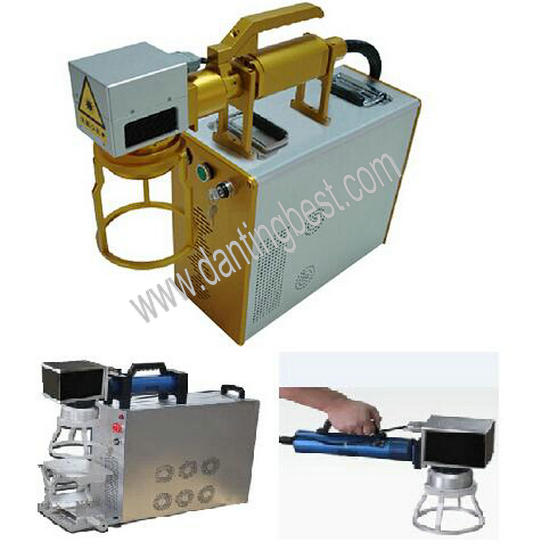

1.Adopting separated design: The portable part can movable according to processing demand, and mark
on big and heavy materials directly, which break the limit of using worktable and bring more convenience
to our respected customers.
2. High speed 2-3 times over than traditional diode pumped marking machine.
3. Air-cooling, no after-sales services and maintenance.
4. Long lifetime: 100,000 hours=35years.
Main Advanced configurations
1. Raycus generator(best one in China market, guarantee 2 years, lifetime 100,000 hours);
Or Germany IPG generator, best in worldwide!
2. Germany technology lens head, max speed can reach 20000mm/s, highest precision;
3. Singapo field lens;
4. Beijing EzCad software, easy to use;
5. Taiwan power supply, best quality;
Technical Parameter
|
Model
|
DTML-10F(P)
|
DTML-20F(P)
|
DTML-30F(P)
|
DTML-50F(P)
|
Other
|
|
Laser Power
|
10W
|
20W
|
30W
|
50W
|
......
|
|
Laser Wavelength
|
1064nm
|
|
Q-frequency
|
20KHz~30KHz
|
|
Divergence
|
0.3mard
|
|
Marking Range
|
110*110mm
|
|
Minimum Line Width
|
0.02mm
|
|
Minimum Character
|
0.15mm
|
|
Marking Depth
|
0 ~0.5mm
|
|
Engraving Line Speed
|
≤7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|
Beam Quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batchnumber, Serialnumber, Frequency, etc.
|
|
Graphic Format Supported
|
bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
|
|
Working Voltage
|
220V±10%/50Hz/4A
|
|
Unit Power
|
＜0.5kw
|
|
Use of the Environment
|
Clean and Dust Free or Dust less
|
|
Working Condition:Humidity
|
5%-75%，Free of Condensed Water
|
|
Laser Module Life
|
＞100000 hours
|
Applications
1. Mtal&Non-Metal materials and products:stainless steel, copper, aluminum alloy, acrylic, ceramics, plastics,
organics, thermo-elastomer rubbers, paper, scissors, bearing, gear, detonator;
2. Electronic industry: capacitor, inductor, oscillator, PCB, IC, connector, control panel, instrument.
3. Others: cosmetics, food package, bottle, gift, advertisement & signcrafts, craft & gift making.
|
