Main Features
1. The lathe bed is strong and without distortion.
2. X、Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and
smooth movement of the machine.
3. Double motors and drivers of Y axis ensure steady movement.
4. Application of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise.

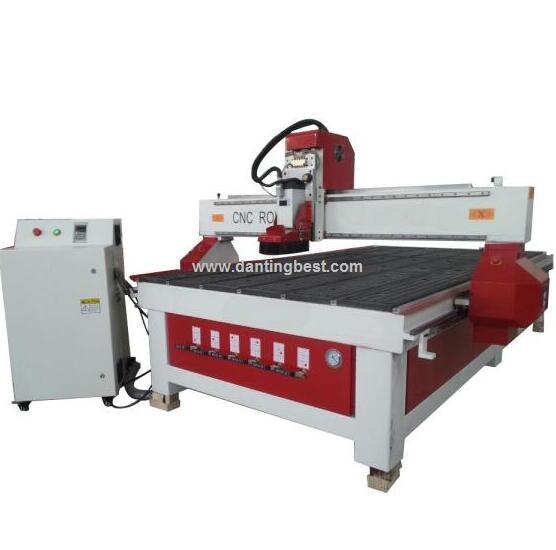

6. The DTRW Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum
pump of strong adsorption which can adsorb materials with different size.
7. Humanized design of vacuum table with T-slot and clamps, can adsorb or clamp the material,operation is convenient.
8. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press.
Technical Parameter
|
Description
|
Parameter
|
|
DTRW-1325S
|
DTRW-1530S
|
Option
|
|
Working Area(X*Y*Zmm)
|
1300*2500*160mm
|
1500*3000*160mm
|
......
|
|
X, Y Structure
|
Rack gear
|
|
Z Structure
|
Ball Screw
|
|
Max Moving Speed
|
32000mm/min
|
|
Max Engraving Speed
|
20000mm/min
|
|
X Y Z traveling positioning accuracy
|
±0.04/300mm
|
|
X Y Z repositioning accuracy
|
±0.04mm
|
|
Spindle power
|
3kw/4.5kw/6kw/8kw
|
|
Spindle Speed
|
6000-24000rpm
|
|
Diameter of cutter
|
ф3.175,ф6,ф12.7
|
|
Voltage
|
AC220V, 50Hz(option: AC380V, 50Hz)
|
|
Drive type
|
Stepper(Option: servo)
|
|
Working Dictate
|
G Code
|
|
Operating system
|
NC-Studio(Option: Dsp System, match3, PC software)
|
|
Interface
|
USB
|
|
Flash memory
|
128M(U Disk)
|
|
Software Compatibility
|
Type3, Ucancam(option, Artcam Software)
|
|
Running Environment
|
Temperature:0℃～45℃
|
|
Relative humidity:30%～75%
|
Applications
Applicable industry: Wood industry, it is a professional wood door making and furniture making machine.
Advertising industry, breastplate, doorplate.
Applicable material: Wood, organic glass, PVC board, KT board, Acrylic, etc.
